Ⅰ.Product Introduction

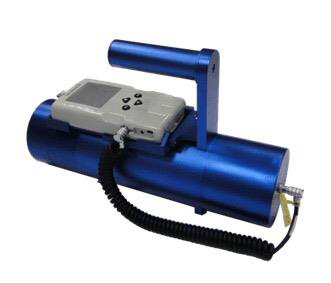

TK-214 is an environmental level X & γ Dose Equivalent (Rate) Meter, consists of high sensitivity composite scintillator detector and main unit. It can be used to distinguish natural occurring radioactive materials and artificial radioactive materials. With advantages of good energy response, radiation response, accurate measurement, it can make fast response to slight radiation increase.
Ⅱ. Main Features
l Large area composite scintillator detector, wide energy response rang
l High sensitivity, fast response to slight radiation
l Built-in GM tube in main unit, expand measuring range
l Adjustable dose and dose rate warning thresholds
l Automatic shift between high range and low range
l Large LCD with backlight
l Waterproof wear-resistant aluminum shell, corrosion resistance, IP67
l Regular configured with cables, data cable and PC software, convenient for customers to use
l Tripod optional for fixed-point monitoring
Ⅲ.Technical Specifications
Item | Parameter |
Detector | Large composite scintillator GM tube(built-in main unit) |
Size of Detector | Ф76mm×76mm，13mm×54mm |
Energy Range | 20KeV~7.0 MeV，65KeV~3.0 MeV |
Measuring range | 1nSv/h~100μSv/h ，100nSv/h~100mSv/h |
Sensitivity | >2000cps/(μSv/h)＠137Cs，1.0cps/(μSv/h) |
Relative Error | <10%(137Cs) |
Power | Rechargeable Li battery, 120h for main unit, 16h for overall unit |
IP Rating | IP67 |
Communication | USB |
Temp.&Hum. | －30℃~50℃; 0~95% |
Weight | ≤2kg |
Ⅳ.Applications
l Homeland security Environmental protection Nuclear power plants Customs Public safety and emergency response
