Ⅰ.Product Introduction

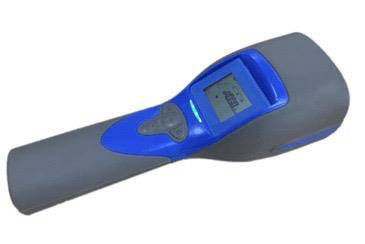

TK-217 is a new hand-held radiation survey meter designed for detection of neutron and gamma radiation at the same time. Its neutron detector and gamma detector are 6LiI (Eu) and CsI (Tl) scintillation crystal respectively coupled with photodiode. The neutron detector is surrounded by unique cylindrical moderator which greatly improves the sensitivity of neutron detection.
Ⅱ. Main Features
l Independent neutron/Gamma detection channel and independent alarms
l Freely switch between three detection modes of counting rate, dose rate, accumulated dose
l High-definition LCD with backlight
l Audible, visible and radiation icon alarms simultaneously, alarm threshold is continuously adjustable
l Several shortcut keys make operation easy and convenient
l Electro-magnetic interference immunity, CE compliant
l Compliant with ANSI N42.35 and ITRAP standard
Ⅲ.Technical Specifications
Item | Parameter | |
Neutron | Gamma | |
Detector | 6LiI(Eu) | CsI(Tl) |
Energy Range | 0.025 eV ~ 14 MeV | 30keV~ 3.0 MeV |
Sensitivity | 0.5CPS/(μSv/h), @252Cf | >130CPS/(μSv/h), @137Cs |
Counting Rate | 1~999cps | 1~9999cps |
Dose Rate Range | 0.1μSv/h ~ 100mSv/h | 0.01μSv/h ~100μSv/h |
Dose Range | 0.01μSv~ 10 Sv | 0.01μSv~ 10 Sv |
DER Relative Error | ≤±20％（200keV~7MeV） | ≤±20％ |
Display | High definition LCD | |
Shortcut Keys | 4 function keys | |
Power Supply | 4 dry batteries, continuous working time: ≥100h | |
Data Storage | Can store 100000 groups of data | |
Data Storage Ways | Continuous storage: continuous save data according to the preset save time internal. Trigger storage: when alarm is triggered, it will save data every 1s. | |
Communication | USB | |
Size & Weight | Ф90×267 (mm); 590g(without batteries) | |
IP Rating | IP65 | |
Ⅳ.Applications
l Radiation protection of nuclear facilities, nuclear regulation departments and the enterprises with radioactive sources
l Emergency response for Disease Control Centers and environment monitoring department
l Security of large-scale activities, embassies and consulates abroad
l Prevent illegal transportation of radioactive materials or nuclear terrorist attacks from
occurring
