Ⅰ.Product Introduction

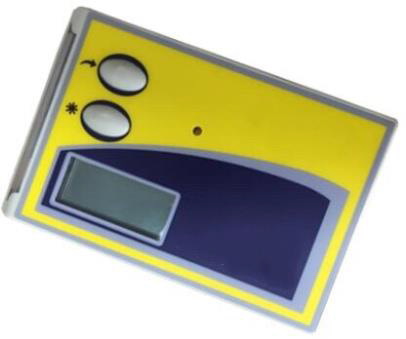

TK-216 is a highly sensitive personal dosimeter capable of detecting X-ray and gamma radiation dose equivalent rate simultaneously. Its detector is made by CsI (Tl) crystal with silicon semiconductor composite, with multiple energy compensation technology which greatly improves the sensitivity. With the universal USB interface and the related software, can realize management of personal dosimeter.
Ⅱ. Main Features
l Silicon semiconductor and CsI (Tl) crystal composite detector
l Alarm threshold is continuously adjustable；Audible, visible and vibrative alarm
l Electro-magnetic interference(EMI) immunity, compliant with GB/T 13161-2003 standard
l USB communication with related software, make it convenient to manage personal dosage
Ⅲ.Technical Specifications
Item | Parameter |
Detector | CsI( Tl) crystal and silicon semiconductor composite detector |
Dose Range | 0.01μSv~9.99Sv |
Dose Rate Range | 0.1μSv/h~100mSv/h |
Energy Range | 48KeV~3MeV |
Angular response | <±20% , (0°～±75°@137Cs) |
Response time | ≤5s (10 uSv/h) |
IP Rating | IP65 |
Temp.&Hum. | Temperature: －30°C~60°C, Humidity: <95% |
Power Supply | > 200 hours (Rechargeable Lithium Battery) |
Weight & Size | 65g (include battery); 86×56×10(L×W×H) (mm) |
Data Storage | Large-capacity memory, can store historical data for long period |
Communication | USB |
Ⅳ.Applications
l Customs and ports
l Environmental survey
l Military
l Fire Departments
l Emergency Response
l Nuclear medicine and nuclear industry
l Nuclear Power Plants
l Civilian "related source" of enterprises
