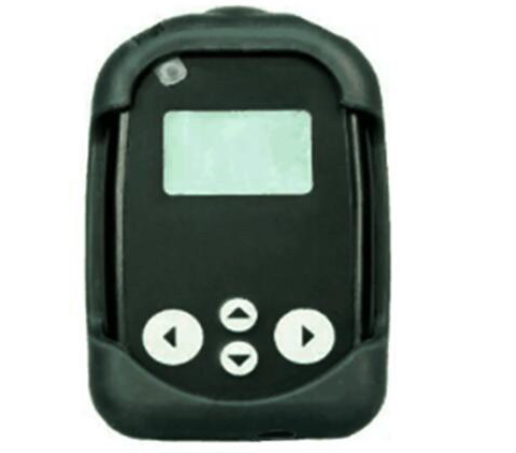

Fig. 1 TK-206 neutron-gamma personal dosimeter
Ⅰ. Product Introduction
TK-206 is a gamma personal dosimeter using CsI crystal as the detection unit, as shown in Figure 1. Compared to the traditional electronic personal dosimeter, its sensitivity is higher more than 1,000 times. A special energy compensation design effectively guarantees the reliability of measurement results. A unique noise reduction circuit design is used, making the lower energy detection limit down to 20keV.
Ⅱ. Main Features
l High-density scintillation crystal is used as a detector, with high sensitivity, to measure the environmental radiation level;
l A unique noise reduction circuit design is used, making the lower limit of energy detection than that of the general personal dosimeter, with the lower limit up to 20keV;
l Energy compensation design is used, providing high data reliability;
l To support networking and GIS, and to achieve the intelligent and networking measurement of the staff dose and site radiation
Ⅲ. Technical Specifications
l Detector: 3CC CsI crystal;
l Photon collection unit: silicon photodiode;
l Detection range of γ-ray energy: 20keV to 3meV; able to detect weapons-grade plutonium;
l Alarm: sound, light and vibration alarms;
l Sensitivity: not less than 600cps (1μSv / h) for 137Cs;
l Dose rate: 0.01μSv / h to 0.1mSv / h;
l Error range: ± 20%;
l Protection level: IP65;
l Response time: 0.25s;
l Standby time: to continuously work for 300h;
l Operating ambient temperature: -30℃ to 50℃;
l Weight: 200 grams;
l Communication: to support USB and Bluetooth communication;
l Storage: 10000 data;
l Ground drop test: 1.5 m height from the cement ground;
l Power supply: built-in lithium batteries; wireless charging.
Ⅳ. Applications
l Used by staff working in the gamma radiation field.
