5×5 NaI(TI) scintillation detector
Place of origin:China
Type:127B127/5M
Product details





Description : NaI(Tl) scintillation detector

Scintillation crystal : NaI(Tl), 127x127 mm.

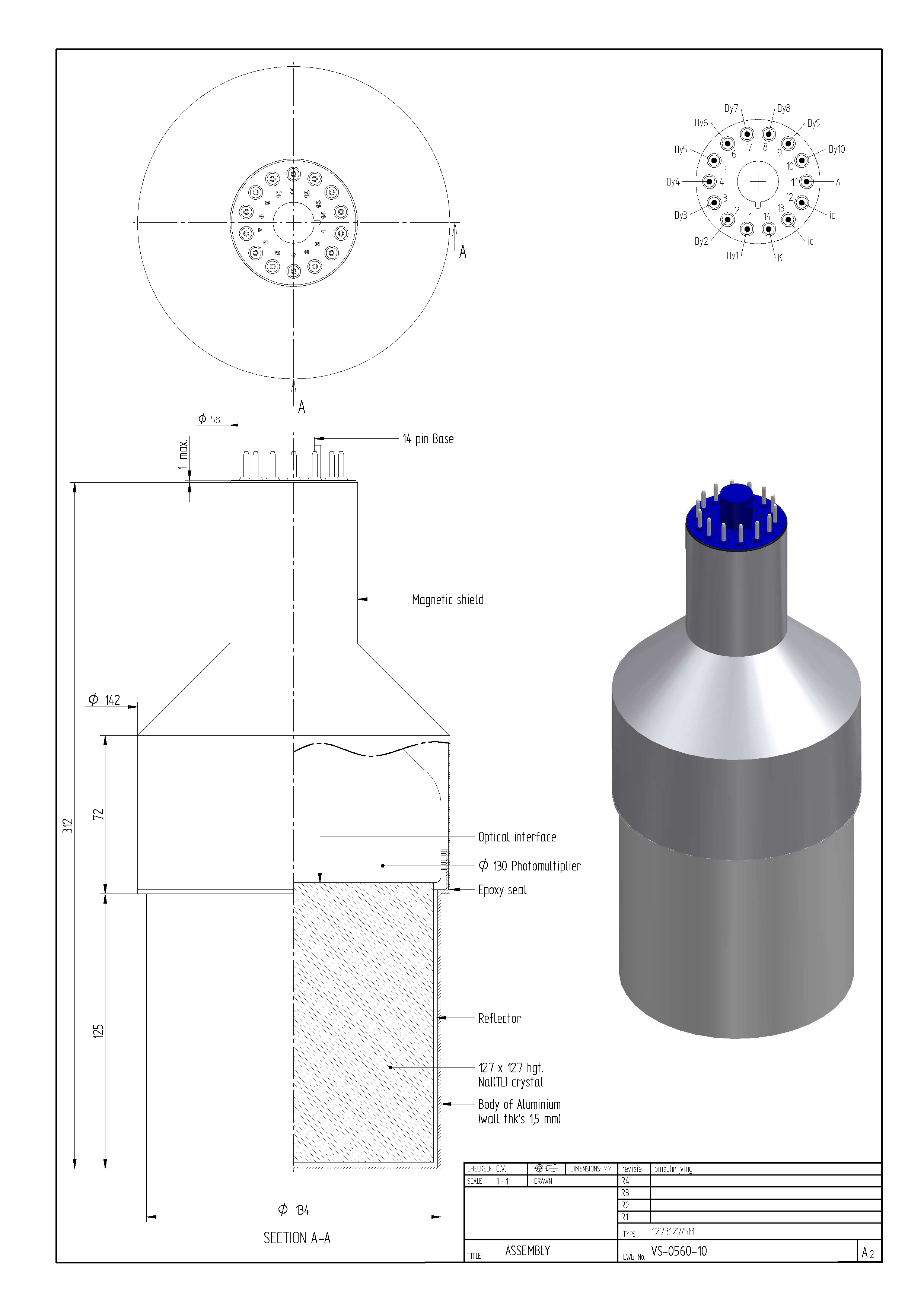

Drawing : VS-0560-10.

Photomultiplier tube : ?127 mm, ETL 9390 or eq.

Connections : 14-pins JEDEC connector.

Temperature range :  -20 °C to +70 °C.



Performance

Energy resolution :  < 8.0% FWHM @ 662 keV

Gain stability : < 1.5% over 24 hours at 20 °C

Typical High Voltage : 600 to 800 V
