3×3 NaI(TI) scintillation detector
Place of origin:China
Type:76B76/3M-E2
Product details



Description : NaI(Tl) scintillation detector

Scintillation crystal : NaI(Tl), ?76x76 mm.

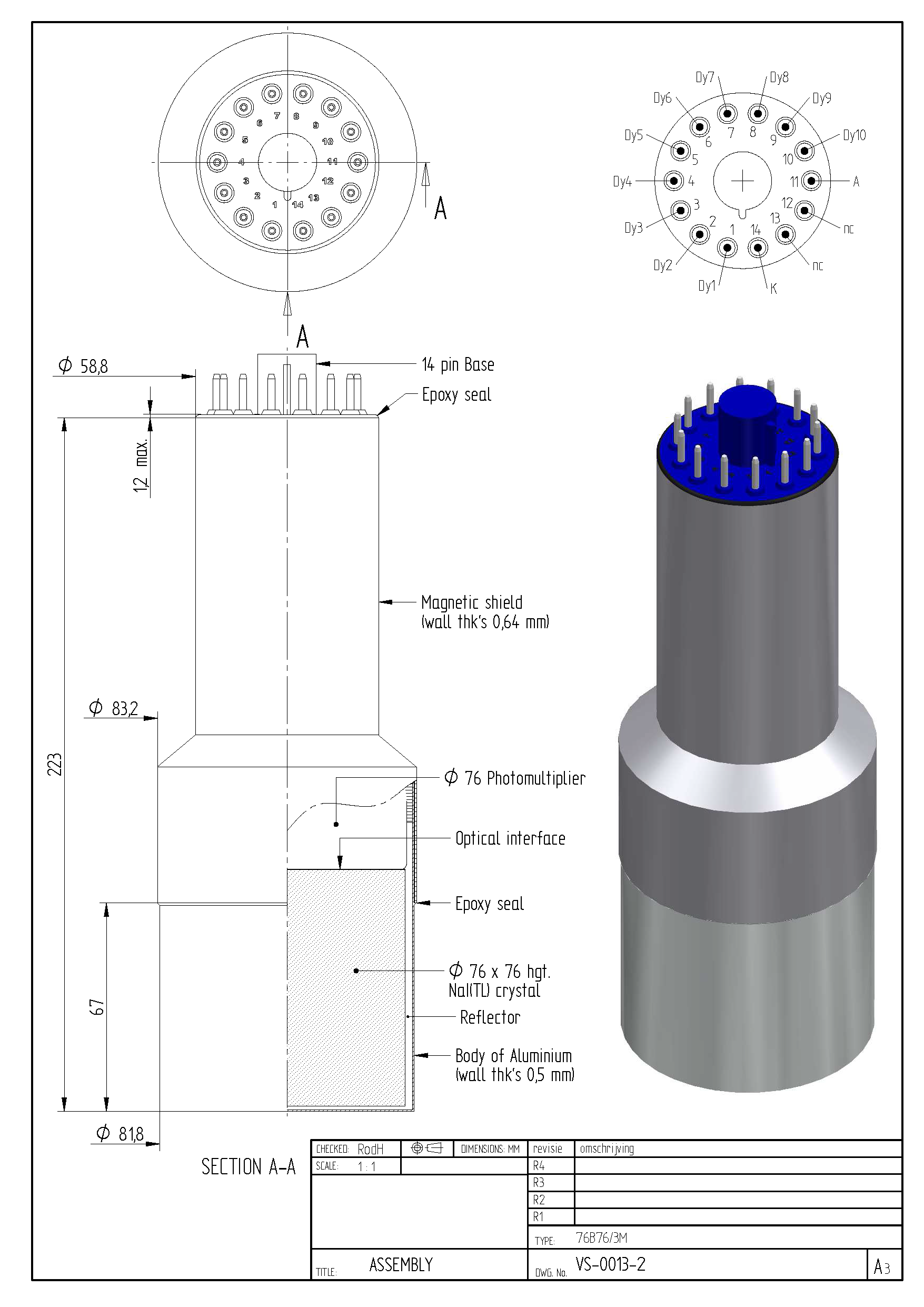

Drawing : VS-0013-30.

Crystal read out :?76 mm, ETL 9305.

Dimensions : Length : 258 mm.

                    Diameter : 59 mm.

Electronics : 50 ? buffer amplifier.

Connections : High voltage      SHV.

                      Signal               BNC.

                      Preamp power   LEMO 0S 302CLL.

Power requirements : ± 12V

Resistor chain : 5.6 MΩ

Temperature range :  -20 °C to +70 °C.



Performance

Output impedance :50Ω

Output pulse polarity : Positive.

Pulse rise time : Approx. 0.5 μs.

Pulse fall time : 50 μs positive.

Maximum signal height:± 10V

Energy resolution :  < 7.5% FWHM @ 662 keV

Gain stability : < 1% over 24 hours at 20 °C

Typical High Voltage : 600 to 800 V
