2×2 NaI(TI) scintillation detector
Place of origin:China
Type:51B51/2M
Product details
Description : NaI(Tl) scintillation detector
Scintillation crystal : NaI(Tl), ?51x51 mm.

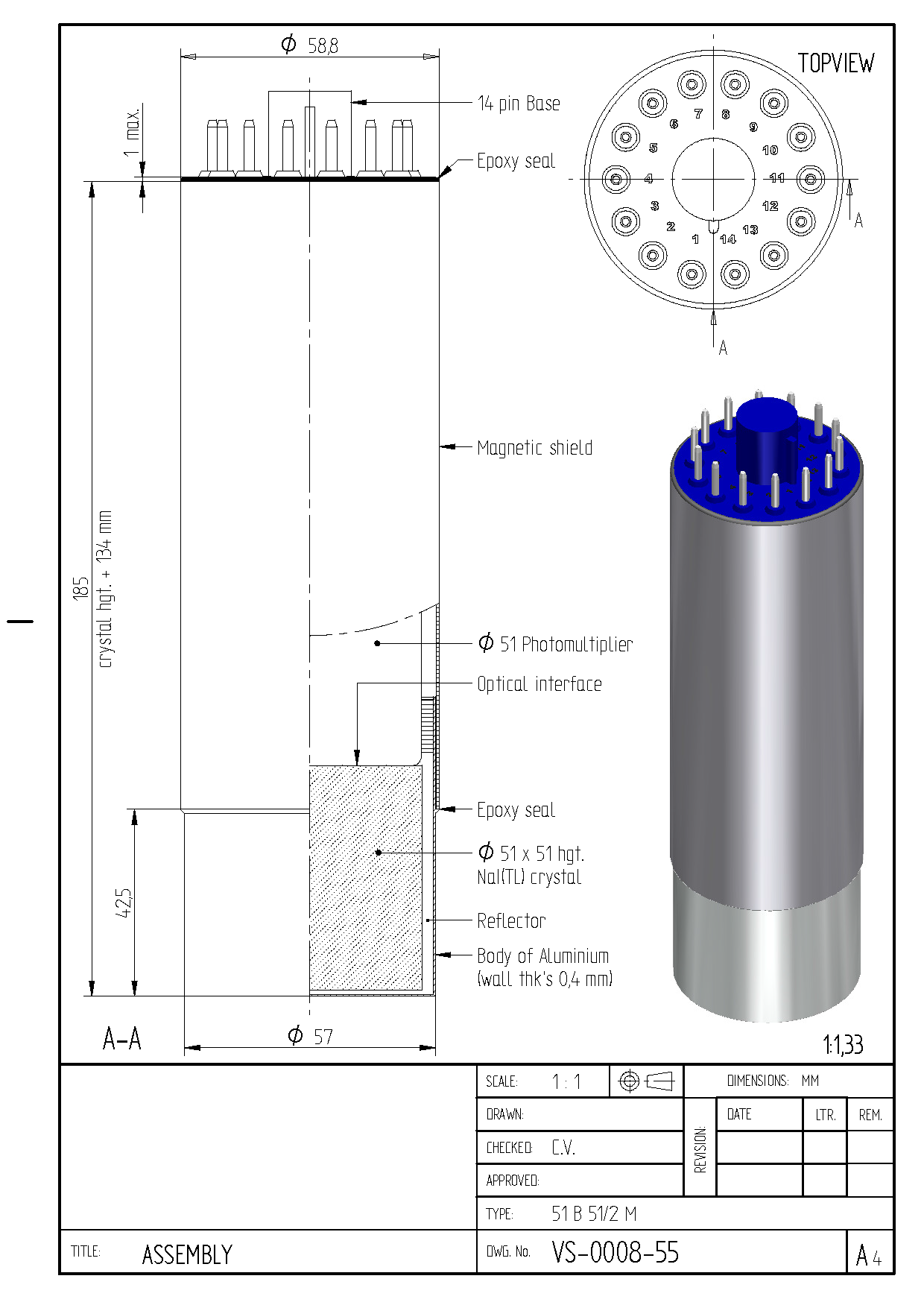

Drawing : VS-0008-55.
Housing : 0.5 mm aluminium.
Magnetic shielding : Solid 0.63 mm around PMT.
Photomultiplier tube : ?51 mm, ETL 9266 or eq.
Dimensions : Length : 185 mm.
Diameter : 58.8 mm.
Connections : 14-pins JEDEC connector.
Temperature range : -20 °C to +65 °C.
Performance
Energy resolution : < 7.5% FWHM @ 662 keV
Gain stability : < 1% over 24 hours at 20 °C
Typical High Voltage : 600 to 800 V
